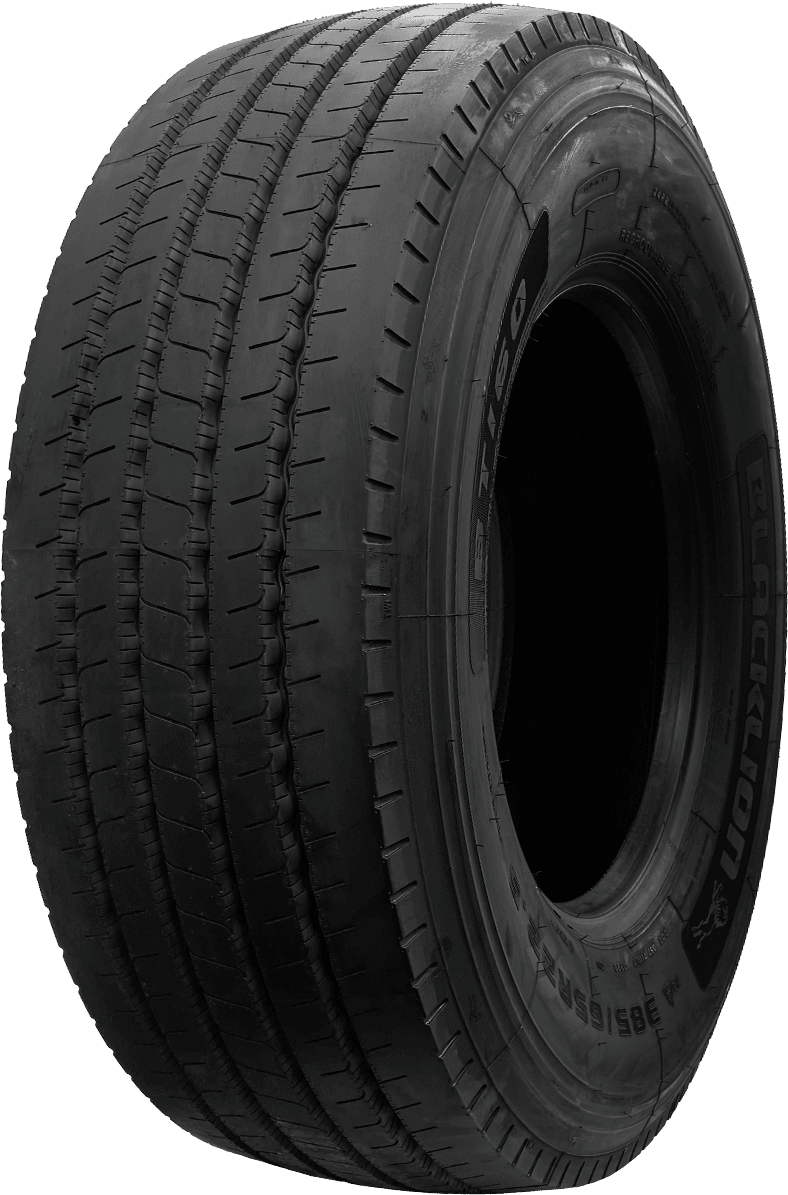

BD175

Medium and long mileage trucks running on paved and highway roads

Origin	Size	Axle Position	PR	LI/SS		Standard Rim	Max. Load				Pressure				Tread Width (mm)	Overall Diameter (mm)	Section Width (mm)
							(kgs)		(lbs)		(kPa)		(PSI)
							S	D	S	D	S	D	S	D
VN	11R22.5	Drive	16	146/143	K	8.25	3000	2725	6610	6010	850	850	123	123	20	1065	279
VN	205/75R17.5	Drive	14	124/122	L	6.00	1600	1500	3525	3310	750	750	110	110	15	753	204
VN	215/75R17.5	Drive	16	135/133	L	6.00	2180	2060	4805	4540	860	860	125	125	15	767	211
VN	235/75R17.5	Drive	18	143/141	L	6.75	2725	2575	6005	5675	860	860	125	125	15	797	233
VN	245/70R19.5	Drive	18	144/142	J	7.5	2800	2650	6175	5840	900	900	130	130	15.5	839	248
VN	295/80R22.5	Drive	18	152/149	M	9.00	3550	3250	7825	7165	900	900	130	130	22	1044	298
VN	315/70R22.5	Drive	18	156/150	L	9.00	4000	3350	8820	7385	900	900	130	130	20	1014	312
VN	315/80R22.5	Drive	9	156/150(154/150)	L(M)	9	4000	3350	8820	7390	850	850	125	125	23	1076	312
VN	315/80R22.5	Drive	20	156/153	L	9.00	4000	3650	8820	8045	850	850	125	125	23	1076	312

S=Single D=Dual; 1inch=25.4mm 1kPa=0.142psi 1KG≈2.2lbs

Performance
